Best Graphic Card On The Planet ( GeForce GTX TITAN Z Graphics Cards)
® GTX™ TITAN Z is a gaming monster, the world’s fastest graphics card built to power the most extreme PC gaming rigs on the planet. Stacked with 5760 cores and 12 GB of memory, this dual GPU gives you the power to drive even the most insane multi-monitor displays and 4K hyper PC machines.
GeForce GTX TITAN Z Product Video
NVIDIA’s Tom Petersen explains how GTX TITAN Z is built to power the most extreme PC rigs. Watch Video >

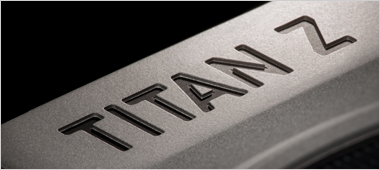

GTX TITAN Z Launch Video
See how GTX TITAN Z stunning design, inside and out, delivers insanely gaming power and speed. Watch Video >

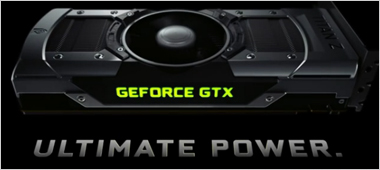

Announcing GeForce GTX TITAN Z
Ultimate Power. GTX TITAN Z combines the power of two GPUs to make one insane graphics card. Watch Video >
1 - A GeForce GTX TITAN Z GPU must be paired with another GeForce GTX Z GPU (graphics card manufacturer can be different) with the same frame buffer size. SLI requires sufficient system cooling and a compatible power supply. Visit www.nvidia.in/sli for more information and a listing of SLI-Certified components.
2 - NVIDIA 3D Vision requires 3D Vision glasses and a 3D Vision-Ready monitor. See www.nvidia.in/3dvision for more information.
3 - NVIDIA 3D Vision Surround requires 3D Vision glasses and three matching 3D Vision-Ready displays. In addition a DisplayPort to Dual-link DVI adapter may be required to connect one of the 3D Vision Surround monitors. See www.nvidia.in/surround for more information.
2 - NVIDIA 3D Vision requires 3D Vision glasses and a 3D Vision-Ready monitor. See www.nvidia.in/3dvision for more information.
3 - NVIDIA 3D Vision Surround requires 3D Vision glasses and three matching 3D Vision-Ready displays. In addition a DisplayPort to Dual-link DVI adapter may be required to connect one of the 3D Vision Surround monitors. See www.nvidia.in/surround for more information.

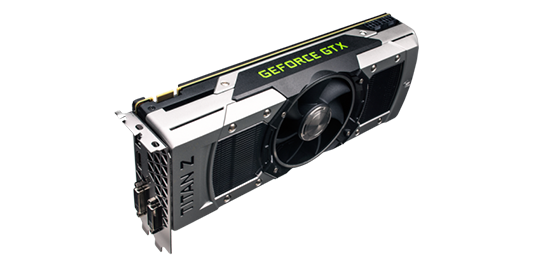

GeForce GTX TITAN Z
GPU Engine Specs | |
CUDA Cores | 5760 |
Base Clock | 705 MHz |
Boost Clock | 876 MHz |
Texture Fill Rate | 338 GigaTexels/sec |
Memory Specs | |
Memory Speed ( Gbps ) | 7,0 |
Memory Amount | 12 GB |
Memory Interface | 768-bit GDDR5 |
Max Bandwidth | 672 GB/sec |
Card Features | |
FXAA and TXAA |  |
SLI Ready | |
3D Vision | |
PhysX | |
Programming Environment | CUDA |
DirectX | 12 |
OpenGL | 4.4 |
Bus Type | PCI-E 3.0 |
3D Gaming | |
Blu Ray 3D | |
Specifications | |
Maximum Digital Resolution | 4096x2160 |
Max VGA Resolution | 2048x1536 |
Media Connection |
|
Multi-Display | |
HDCP | |
HDMI | |
HDMI Audio | Internal |
Dimensions | |
Height | 11,16 cm / 4,376 Inches |
Length | 26,67 cm / 10,5 Inches |
Power and Temperature | |
Maximum Temperature | 95 C |
Power Consumption | 375 W |
Minimum Power Requirement | 700 W (with a minimum 12V current rating of 42A on a single rail) |
Power Connections | 8-pin x2 |
Maximum Digital Resolution - 3840x2160 at 30Hz or 4096x2160 at 24Hz supported over HDMI. 4096x2160 (including 3840x2160) at 60Hz supported over Displayport. Support for 4k tiled MST displays requires 326.19 driver or later.
